Coated Aluminum Disc
Color coated aluminum circles feature a rich variety of colors and excellent corrosion resistance, combining aesthetics with metallic strength, and offer good processing performance. They are widely used in aluminum cookware (such as non-stick pans and kettles), household appliance panels, lamp reflectors, and decorative signs.
Prepainted Aluminum Circle Specification
Product | Color coated aluminum circle |
Alloys | 1050, 1060, 1070, 1100,3003, 3004, 3104,5052,etc. |
Tempers | O, H14, H12, H24 |
Coating types | Non-stick, Teflon (PTFE), or PVDF,FEVE,Epoxy |
Coating thickness | Generally between 15μm and 25μm(customized) |
Aluminum circle thickness | 0.3mm - 3.0mm(customized) |
Diameter | φ100mm - φ1200mm(customized) |
Colors | Black, white, silver gray, champagne gold, bronze,etc. It can be customized according to RAL, PANTAONE or samples. |
Applications | non-stick cookware, kitchenware, lamp shades, traffic signs, and architectural decoration |

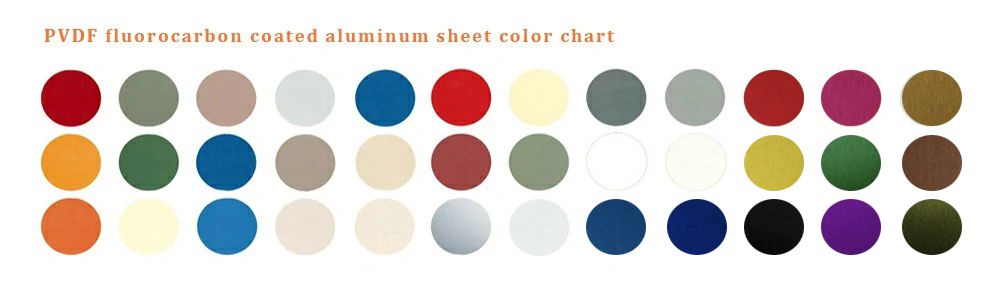

Aluminum circle colors
Coated aluminum circle production process
1. Choose aluminum coils of proper alloys and perform cleaning, degreasing and chemical passivation to enhance coating adhesion.
2. Primer and topcoat are applied by roller, followed by high-temperature curing to form the color and protective layers.
3. Quality Inspection and Cooling: Film thickness and color difference are checked, and the substrate is cooled and set.
4. The substrate is die-cut into circular pieces of the specified diameter.
5. A protective film is applied to the aluminum circle surface to prevent scratches, and finally, the aluminum circles are packaged and shipped.
Applications
1. Cookware, kitchenware, utensils,etc.
2. Round sign blanks, warning signs, reflective sign base plates.
3. Lamp shades, light covers, trim rings, reflectors (depending on coating/finish)
4. Medallions, nameplates, ceiling/door decorative discs, furniture trim, interior decorative panels
5. End caps, covers, lids, fan covers, housings, protective plates
6. Bases for clocks, trophies, display stands, craft/DIY discs, branded promotional discs
7. HVAC / ventilation
8. Packaging/closures (industrial)
Colored aluminum circle VS plain aluminum discs
1.Eliminating secondary processing and reducing costs
The coating is pre-applied at the factory, allowing customers to directly stamp after purchase. This eliminates the need for subsequent painting and baking processes, reducing equipment and labor costs and shortening the production cycle.
2. Strong coating adhesion and excellent processing performance
Utilizing professional roller coating technology and high-temperature curing, the coating adheres tightly to the substrate. Even after severe processing such as deep stretching and bending, the surface coating is not prone to cracking or peeling (excellent T-bend performance).
3. High appearance quality and rich colors
The coated aluminum circles have high surface smoothness, free from common painting defects such as runs and bubbles. Colors can be customized according to color cards, with uniform gloss, enhancing the grade and aesthetics of the final product.
4. Better corrosion resistance and weather resistance
The coating effectively isolates air and moisture, providing stronger rust and corrosion resistance than ordinary aluminum round sheets (especially those without anodizing), resulting in a longer service life.
5. Environmentally friendly and with high utilization rate
Industrial continuous coating reduces exhaust emissions, meeting environmental standards. Furthermore, the material utilization rate of coil coating is generally higher than single-piece spraying, reducing waste.

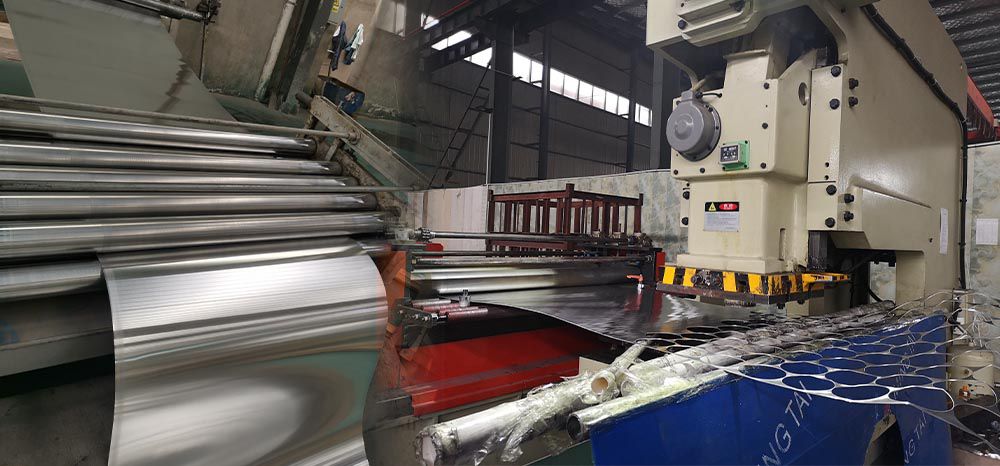

Factory view

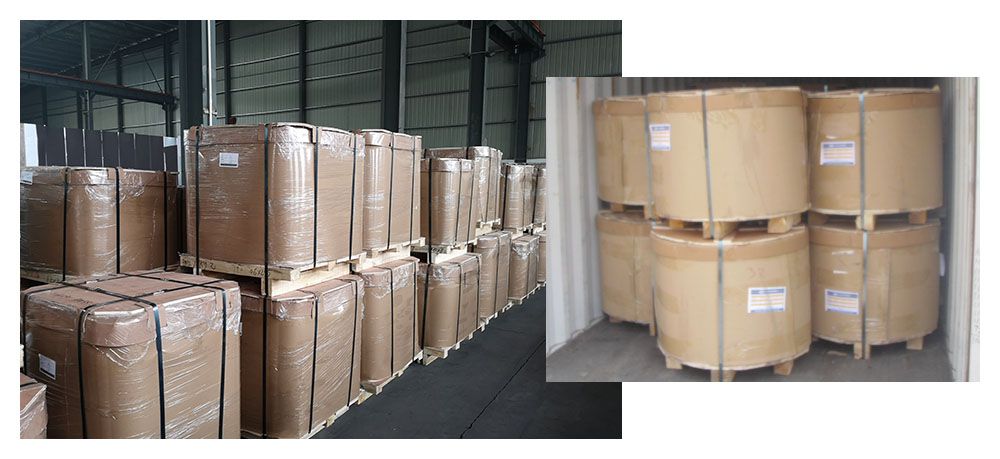

Packaging &shipping
Instant Quote
FAQs
1. What are color coated aluminum circles?
Color coated aluminum circles are round aluminum discs finished with a colored coating, such as PE paint, PVDF paint, powder coating, or anodized color treatment. They are commonly used in cookware, lighting, signage, reflectors, and decorative products.
2. Are color coated aluminum circles suitable for cookware?
They can be used for certain cookware components, but the coating must be specifically certified as food-contact safe and suitable for the intended temperature range. For cooking surfaces, specialized non-stick or food-grade coatings are normally required.
3. Can the circles be deep drawn, stamped, or spun after coating?
Yes, but this depends on the alloy, temper, coating flexibility, thickness, and forming depth. Soft tempers such as O/H0 are generally preferred for deep drawing and spinning. Testing is recommended before mass production.
4. Will the coating crack during bending or forming?
A high-quality flexible coating should resist cracking during normal forming operations. However, excessive deformation, sharp bends, improper tooling, or a hard aluminum temper may cause coating damage.
5. What information is needed when requesting a quotation?
Provide the following details:
· Aluminum alloy and temper
· Diameter and thickness
· Required color code, such as RAL or Pantone
· Coating type and thickness
· Surface finish
· Your application
· Quantity required
· Packaging and delivery destination
