Aluminum circle plate for lighting
Aluminum discs offer excellent thermal conductivity, quickly dissipating heat generated during LED lighting operation and extending the lifespan of the light source. They are also easily stamped and stretched, adaptable to various lighting fixture designs.
They can be polished, anodized, or coated, resulting in a refined texture, corrosion resistance, and rust resistance. Combining aesthetics and durability, they meet the appearance and functional requirements of lighting fixtures.
They are used in the housings, heat sinks, and reflectors of LED downlights, spotlights, and panel lights. They can also be used to create decorative and structural accessories for chandeliers, wall lights, and outdoor lights, covering residential, commercial, and outdoor lighting scenarios.
Circle aluminum specification
Alloys | 1050, 1060, 1070, 1100, 3003,3004 |
Tempers | O/H12/H22/H14/H24/H16/H26/H18 |
Surface treatments | Mill finish, anodized, coated, polished |
Thickness(mm) | 0.4-8.0 |
Diameter(mm) | 200-1200 |
Application | Heat sink base, lamp housing, reflector, decorative panel, decorative base, lamp cover, lamp holder, etc. |
Instant quote
Aluminum round plate properties
Elongation: Room temperature elongation of O-state aluminum discs is ≥25%, with a preferred elongation of ≥30% for complex deep-drawn parts, ensuring no cracking under large deformation.
Yield Strength: Yield strength of O-state aluminum discs is between 30~80MPa. Too low a strength leads to wrinkling, while too high a strength results in high tensile resistance and easy breakage.
Anisotropy: Planar anisotropy coefficient Δr is ≤0.5, thickness anisotropy coefficient is ≥1.5, preventing earing and uneven wall thickness during stretching, ensuring symmetrical curved surfaces and uniform wall thickness of the lamp.
Hardening Characteristics: Moderate work hardening rate is to avoid premature hardening during stretching, while ensuring sufficient rigidity after forming to prevent deformation of lamp components.
Grain Size: Grain size is controlled between 5~8 grades, with uniform and fine grains to avoid surface orange peel and cracking caused by coarse grains, improving forming stability.
Surface quality
Our aluminum circle surface is clean and free of defects such as cracks, peeling, scratches, and oil stains; roughness Ra ≤ 0.8μm for reflective/high-end parts (gloss ≥ 90GU after polishing), Ra ≤ 1.6μm for ordinary parts; uniform color difference; oxidation/spray adhesion meets standards, with no peeling or blistering.
Dimensional tolerance requirements
Diameter tolerance ±0.1~±1.0mm (stricter tolerance for precision parts); thickness tolerance ±0.01~±0.05mm; flatness ≤1.0mm/m, no warping; burr height ≤0.05mm; roundness and concentricity deviation ≤0.3mm (precision grade ≤0.1mm), ensuring assembly and machining accuracy.

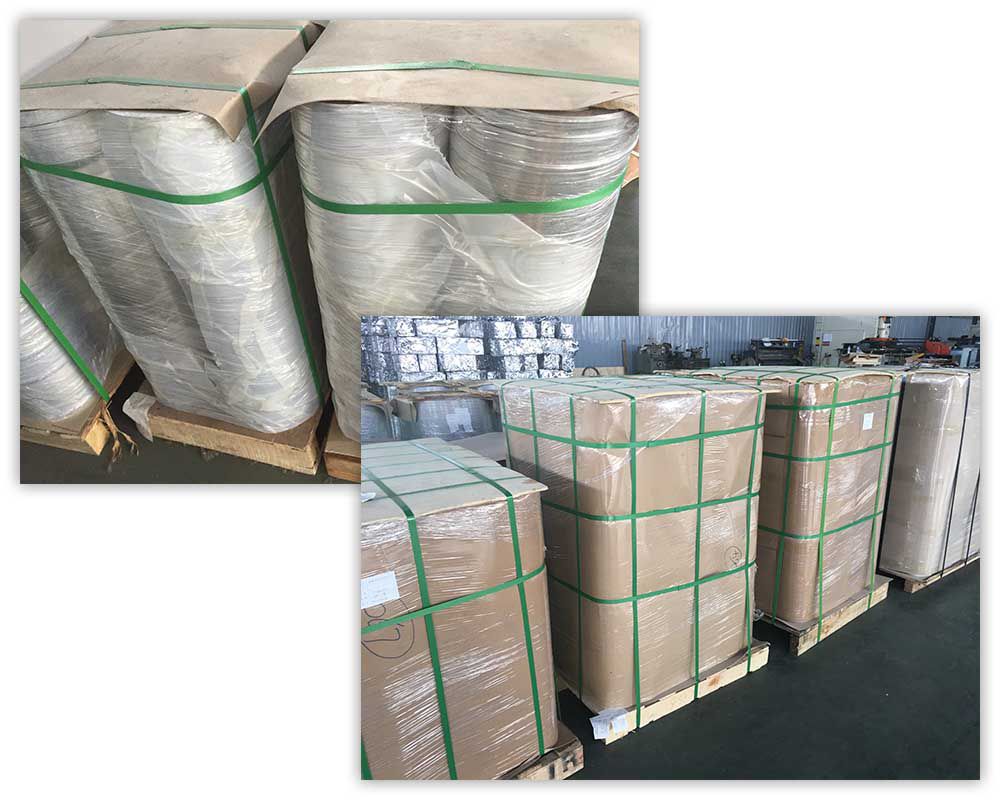

Packaging &shipping
Standardized export packaging is provided, supporting sea and air freight logistics, with flexible shipping arrangements.
Our service
1. We offer different types of aluminum circles like plain, colored and anodized aluminum circles with complete sizes and alloys.

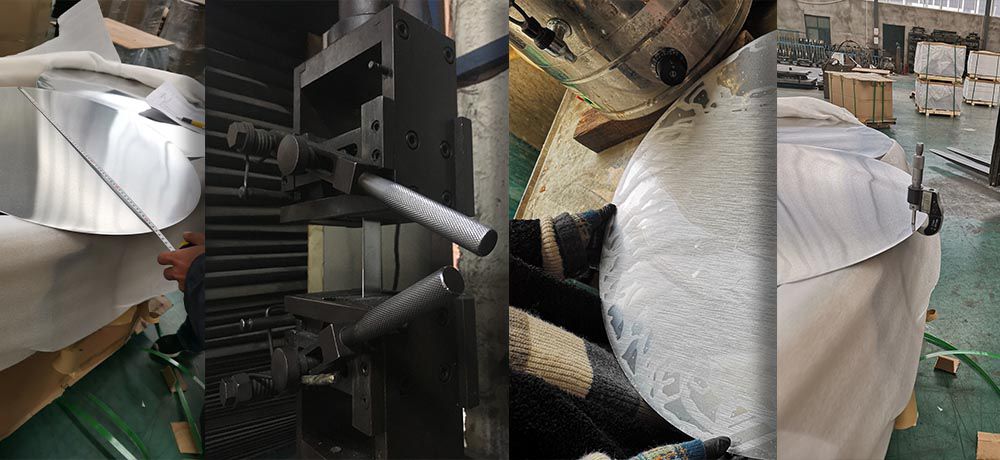

2. We have strict control of aluminum circle quality, including dimensions, performance, and surface quality.
3. We have professional foreign trade sales team to complete quotations, documentation, customs clearance, and other processes.
4. We offer rapid response to after-sales issues, ensuring long-term stable supply, and support flexible cooperation and pricing models.
